How to asseble the Gas Mix Analyser.

How to place the battery.

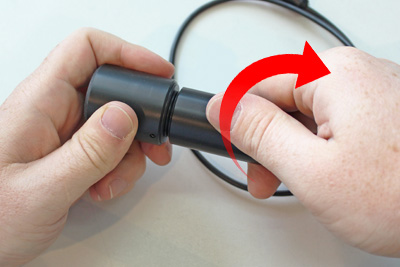

Turn the main body of the Gas Mix Analyser as shown in the picture in order to open the battery slot.

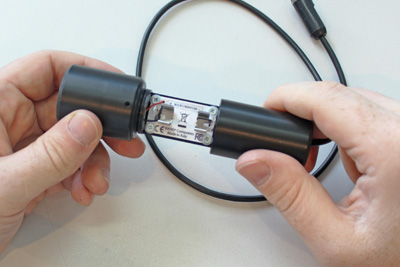

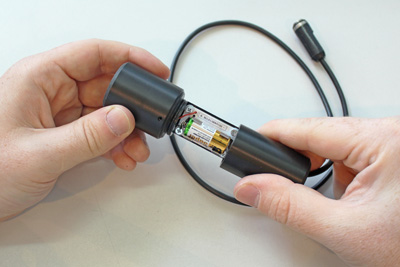

Place the (included) battery in the battery holder, pay attention to respect the polarity "+" and "-".
The polarity of the battery is labeled on the Gas Mix Analyser and on the battery.
     The Gas Mix Analyser requires a [1.5V type N, LR1, MN9100,AM5, 4001] battery.

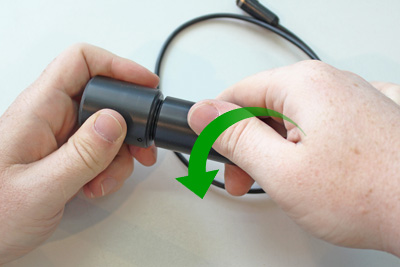

Close the battery slot turning the main body of the Gas Mix Analyser as shown in the picture




How to place the Oxygen Sensor.

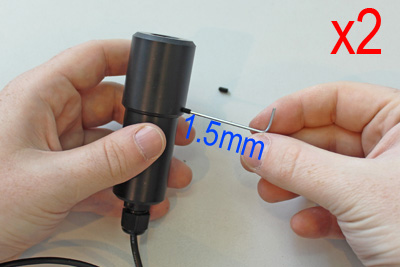

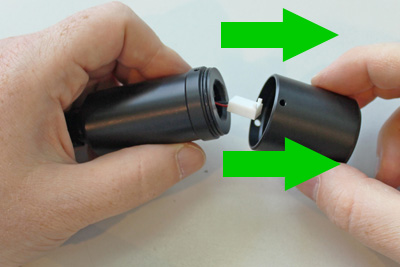

Unscrew the two screws on the head of the Gas Mix Analyser with an 1.5mm Hex screwdriver ^{(not included)} and pull (don't turn) the Gas Mix Analyser top part.

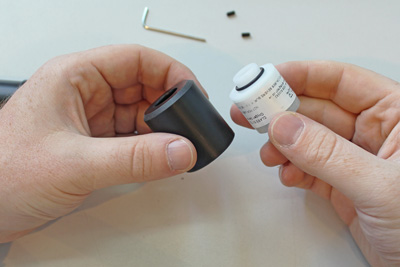

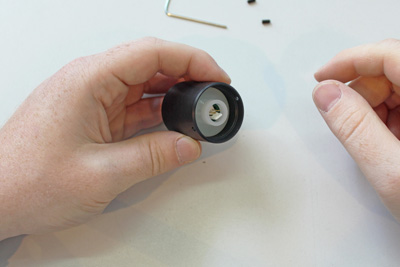

Place the Oxygen Sensor inside the top part of the Oxygen Analyser.

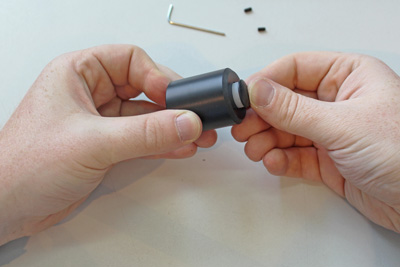

ATTENTION: Is important to place the protecition cap on the Oxy sensor in order to avoid accidentally damages on the Oxy Sensor during the assembly.

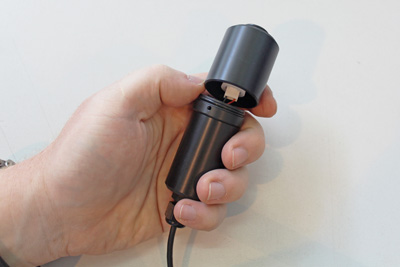

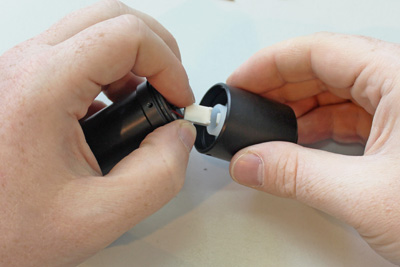

Plug the connector.

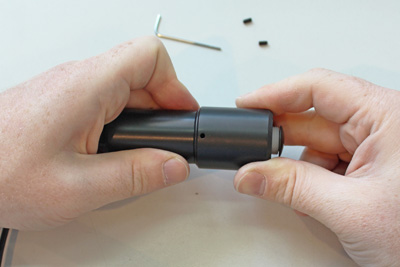

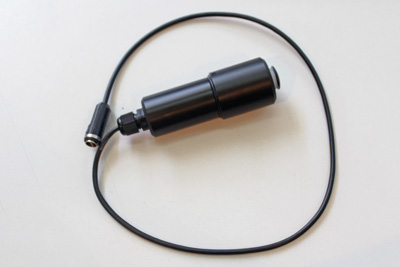

Close the top part of the Gas Mix Analyser (push, do not turn). Make sure that the screw holes match.

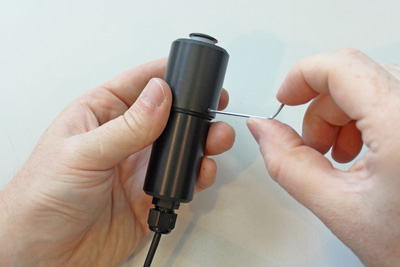

Place the two screws.
